P4L
P4L
P4L

P4L

ID size
Please select from the options above.
Quantity:
-
+

Descriptions

OD: 13/32"
Length: 3/4"
Drill size range from No.12 to 1/4", and also in metric from 4.8 to 6.35mm

Hardened throughout to 62-65HRC

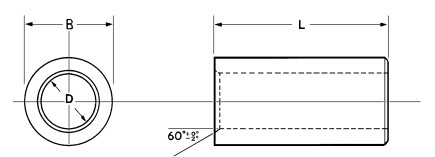

Imperial Headless dimensions

Imperial ISO Tolerances & fits

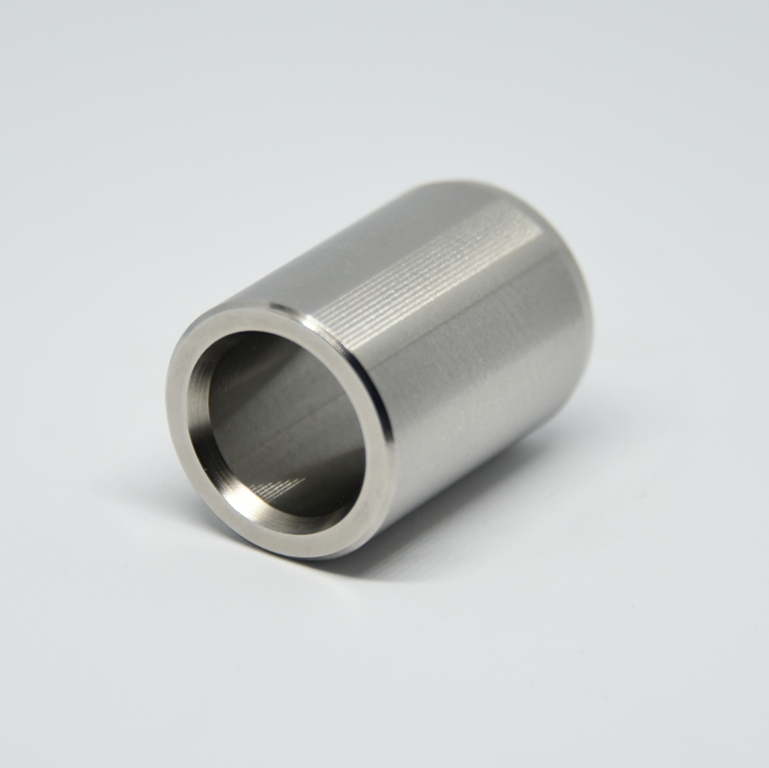

Headless press fit bushes are generally used where a single operation such as drilling or reaming is performed, and replacement due to wear is not anticipated during the life of the tooling. Headless press fit bushes are usually mounted flush with the jig plate, and where space is at a premium they can be placed closer together than headed bushes. This type of bush can also be used for accurate alignment and location purposes.

No detailed specifications are available for this product.

Click on any of the following links to download the file.
