HA8

HA8

ID size
Please select from the options above.
Quantity:
-
+

Descriptions

OD: 1/4"
Length: 1/2"
Drill sizes from 1/16" to No.30, and in metric from 1.6 to 3.45mm

Hardened throughout to 62-64 HRC
Maximum eccentricity 0.003

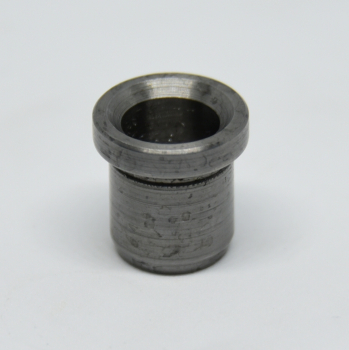

Aerogrip headed bush dimensions

Aerogrip headed bushes are specifically designed for use in softer material jigs - examples being aluminium, wood and plastic. The shoulder or 'top hat' style  is convenient for pressing the bush home and is also useful when it is desired to feed down to a dead stop. They are generally preferable where heavy axial loads may force a headless bush out of the jig plate. These bushes are not made to the regular close tolerances of our standard range.

No detailed specifications are available for this product.

There are no downloads for this product.
