PA20

PA20

ID size
Please select from the options above.
Quantity:
-
+

Descriptions

OD: 3/8"
Length: 3/8"
Drill sizes from  No.12 to 1/4", and in metric from 4.8 to 6.35mm

Hardened throughout to 62-64 HRC
Maximum eccentricity 0.003

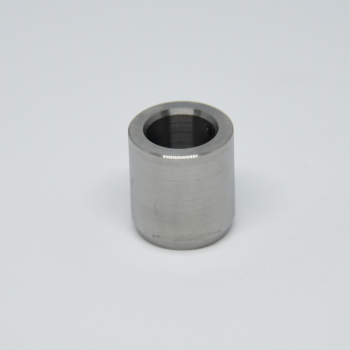

Aerogrip headless bush dimensions

Aerogrip headless bushes are specifically designed for use in softer material jigs - examples being aluminium, wood and plastic. They can be mounted flush with the jig plate, and where space is at a premium, they can be placed closer together than headed bushes. These bushes are not made to the regular close tolerances of our standard range.

No detailed specifications are available for this product.

There are no downloads for this product.
