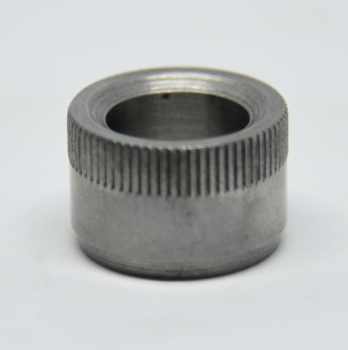

SP10

SP10

ID size
Please select from the options above.
Quantity:
-
+

Descriptions

OD: 5/16"
Length: 1/2"
Drill sizes from No.29 to 3/16", and in metric from 3.3 to 4.75mm

Hardened throughout to 62-64 HRC
Maximum eccentricity 0.003

Part serrated bush dimensions

Part serrated bushes are specifically designed for use in softer material jigs - examples being aluminium, wood and plastic. The serrations stop any axial movement of the bush, and the lower part of the o.d. provides a smooth lead into the fixture. These bushes are not made to the regular close tolerances of our standard range.

No detailed specifications are available for this product.

There are no downloads for this product.
