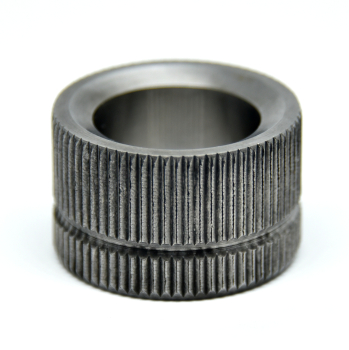

GS12
GS12
GS12

GS12

ID size
Please select from the options above.
Quantity:
-
+

Descriptions

OD: 1/2"
Length: 3/4"
Drill size range from Ltr F to 5/16", and in metric from 6.4 to 7.9mm

Hardened throughout to 62-64 HRC
Maximum eccentricity 0.003

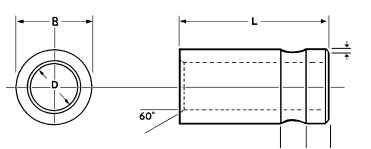

Polygrip recessed serrated bush dimensions

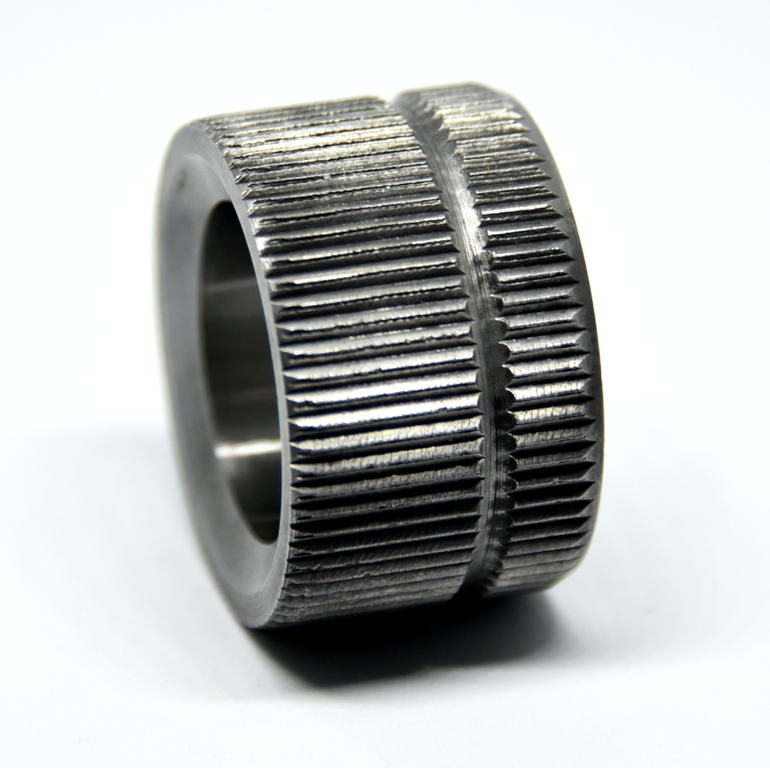

Polygrip recessed serrated bushes are specifically designed for use in composite and castable jigs - examples being carbon fibre, glass fibre and synthetic resin. The serrations stop any axial movement and the recess allows resin to flow and lock the bush in position, thereby becoming an integral part of the fixture. These bushes are not made to the regular close tolerances of our standard range.


No detailed specifications are available for this product.
